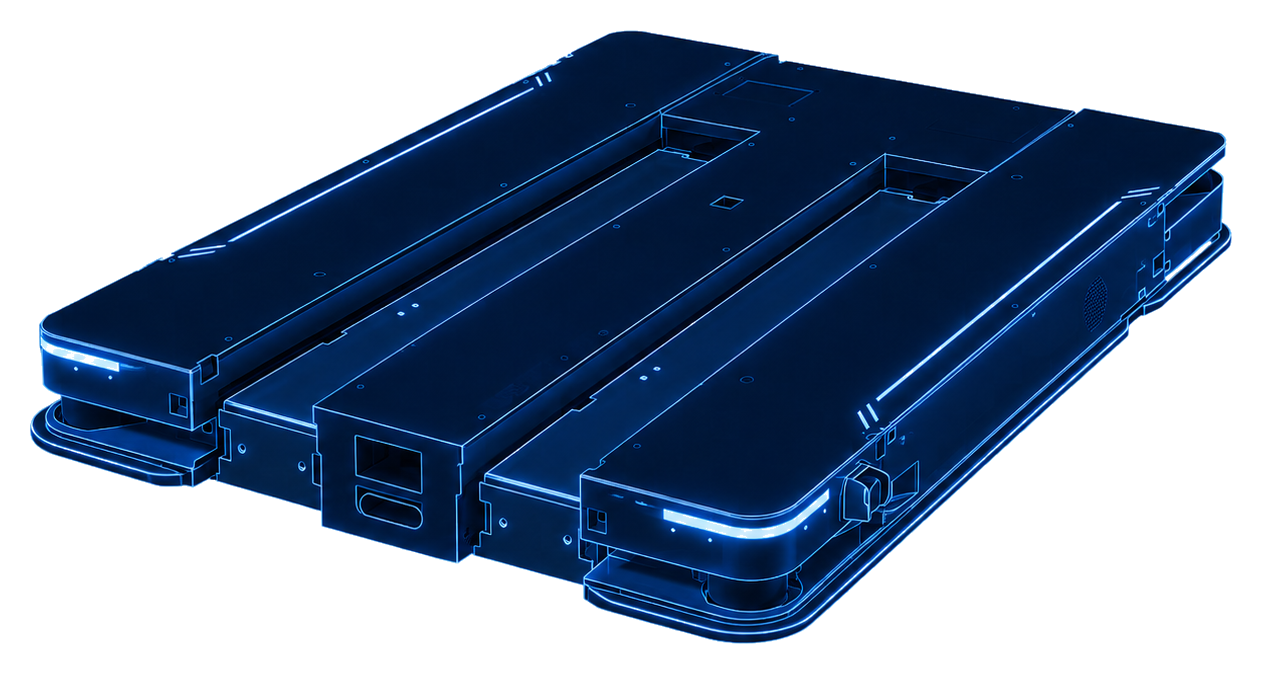

TUSK ES
High-safety AGV, CE-certified pallet-handling robot built for international standard pallets. With up to 1 000 kg lifting capacity, dual-mode navigation (DM-code or SLAM), and laser obstacle detection, it brings effortless, reliable automation to smart factories.
CE-certified pallet AGV designed for safe and efficient intralogistics
Supports Euro and national pallet standards for easy integration
Robust construction with payload capacity up to 1 000 kg
Flexible navigation using DM-codes or SLAM for dynamic environments
Long-life Li-FePO₄ battery with fast 2-hour full charging
Precise docking accuracy ±5 mm with speed up to 1.5 m/s
Technical details
Project |
Specifications |
TUSK ES |
|
Basic Parameters |
Size(mm) |
1312x1060x170 |
|
Maximum Lifting Weight (kg) |
1000 |
|
|
Self-Weight (kg) |
320 |
|
|
Turning Width(mm) |
1900 |
|
|
Fork Height (mm) |
90 |
|
|
Fork Extension Distance (mm) |
1400 |
|
|
Maximum Lifting Height (mm) |
≤330 |
|
|
Display Screen |
5 inches |
|
|
Wireless Communication |
Support dual-band 2.4G/5G,IEEE802.11a/b/g/n |
|
|
Environment |
0~45 |
|
|
Safety Protection |
Obstacle Avoidance Protection |
Front double laser sensors + Rear double laser sensors, 360°Obstacle avoidance detection |
|
Detection Distance of Front Laser(m) |
0-3 |
|
|
Mechanical Protection |
Emergency stop button，Reset button，A protection strip around the whole vehicle body |
|
|
Caution Function |
With voice and photoelectric alarm functions |
|
|
Fork tip protection |
Collision Switch |
|
|
Navigation Mode |
SLAM + DM code |
|
|
Movement Capability |
Maximum Speed (Full Load/Empty Load)(m/s) |
1.5/1.2 |
|
Stop Accuracy |
±20mm / ±2° |
|
|
Movement Mode |
Two-wheel differential |
|
|
Ground Adaptation Gap Slope Step |
40mm(Gap)/4°(7%)(Slope)/10mm(Step) |
|
|
Maximum Slope when the Fork Extension reach to the Maximum |
2° |
|
|
Lithium Battery Performance |
Battery Endurance/Charging Time |
≥8H/≤2H |
|
Battery Type |
LFP |
|
|
Rated Voltage/Capacity |
51.2V/ ≥28AH |
|
|
Battery Life |
The times of fully charging: 1500 times |
|
|
Pallet Requirement |
The Width of W1 and W2 (mm) |
W1≤160， 600≤W2≤900 |
|
Pallet Length L (mm) |
≤1400 |
|
|
Pallet Opening Height H1 (mm) |
95-130mm |
Pallet size adaptation
Specifications |
Parameters |
|
|
Inner Width of
Slots W1(mm) |
W1≤160
|
|
|
Outer Width of Slots W2(mm)
|
W2≥600
|
|
|
Inner Pallet
Height H(mm) |
95≤H≤130
|
|
|
Pallet Length
L(mm) |
≤1400 (DM Code Version)
|
≤1300 (SLAM Version)
|
|
||
Pallet Variation
Ground Adaptability
